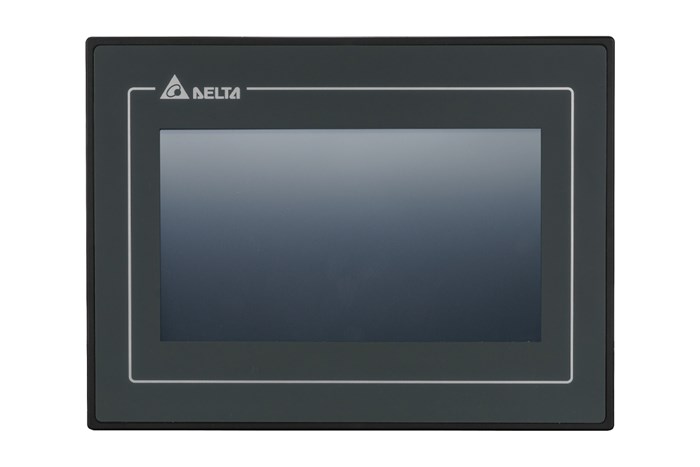

The Basic HMI B Type is easy to install and offers basic functions for general industrial applications. With an IP65 rating, it is suitable for harsh environments.
Multiple size options: 4.3” / 7”
High-performance CPU: Cortex-A8
Highly integrated design: Built-in 2 serial communication ports (D-Sub x 1), USB, and more
Certification: CE / UL
Machinery and equipment in various sectors such as packaging, textiles, woodworking, rubber, and plastics
| DOP-103BQ | DOP-107BV | |
| Display | 4.3" TFT | 7" TFT |
| Resolution (Pixels) | 480 x 272 | 800 x 480 |
| Color | 16-bit | |
| CPU | Cortex-A8 800 MHz | |
| ROM | 256 MB | |
| RAM | 256 MB | |
| COM Port | 2 Serial COM Ports | |
| USB | 1 Slave / 1 Host | |
| Certification | CE / UL | |
| Operating Temperature | 0 ~ 50°C | |
| Storage Temperature | -20 ~ 60°C | |
※ You can search for more files in the download centerDimensions
DOP-107BV
Dimensions (W x H x D, mm) Mounting Dimensions (W x H, mm) DOP-103BQ 137 x 103 x 37.1 118.8 x 92.8 DOP-107BV 215 x 161 x 35.5 196.9 x 142.9
