The Standard HMI I Type is equipped with 3 Serial Communication Ports to meet diverse requirements. It supports Ethernet for fast and easy connection with other equipment.
Multiple size options: 7” / 8” / 10.1“ / 10.4”
High-performance CPU: Cortex-A8
Highly integrated design: Built-in Ethernet port, 3 serial communication ports (D-Sub x 3), USB, SD card slot, and more
Security isolation protection: Power isolation, Serial communication port isolation, Ethernet isolation
Certification: CE / UL
Machinery and equipment in various sectors such as packaging, textiles, woodworking, rubber, and plastics
| DOP-107IV | DOP-108IG | DOP-110IS | DOP-110IG | |
| Display | 7" TFT | 8" TFT | 10.1" TFT | 10.4" TFT |
| Resolution (Pixels) | 800 x 480 | 800 x 600 | 1,024 x 600 | 800 x 600 |
| Color | 16-bit | |||
| CPU | Cortex-A8 800 MHz | |||
| ROM | 256 MB | |||
| RAM | 256 MB | |||
| Ethernet | 1 Port | |||
| COM Port | 3 Serial COM Ports | |||
| USB | 1 Slave / 1 Host | |||
| SD | SD x 1 | |||
| Certification | CE / UL | |||
| Operating Temperature | 0 ~ 50°C | |||
| Storage Temperature | -20 ~ 60°C | |||
※ You can search for more files in the download centerDimension

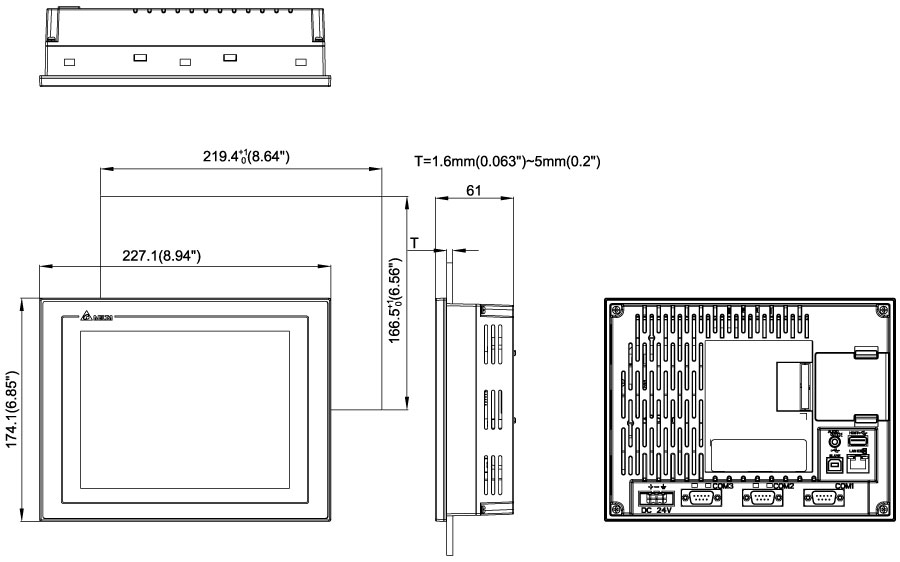

DOP-108IG
Dimensions (W x H x D，mm) Mounting Dimensions (W x H，mm) DOP-107IV 215 x 161 x 61.2 196.9 x 142.9 DOP-108IG 227.1 x 174.1 x 61 219.4 x 166.5 DOP-110IS 272.6 x 200.6 x 54 261.3 x 189.3 DOP-110IG 299 x 224 x 46.8 285.2 x 210.2
