The Standard HMI C Type is equipped with 3 Serial Communication Ports, which allows easy and fast connection to other devices, meeting diverse requirements.
Multiple size options: 5.6” / 7” / 10.1“ / 10.4”
High-performance CPU: Cortex-A8
Highly integrated design: Built-in 3 serial communication ports (D-Sub x 2), USB, and more.
Security isolation protection: Power isolation
Certification: CE / UL
Machinery and equipment in various sectors such as packaging, textiles, woodworking, rubber, and plastics
| DOP-105CQ | DOP-107CV | DOP-110CS | DOP-110CG | ||
| Display | 5.6" TFT | 7" TFT | 10.1" TFT | 10.4" TFT | |
| Resolution (Pixels) | 320 x 234 | 800 x 480 | 1,024 x 600 | 800 x 600 | |
| Color | 16-bit | ||||
| CPU | Cortex-A8 800 MHz | ||||
| ROM | 256 MB | ||||
| RAM | 256 MB | ||||
| COM Port | 3 Serial COM Ports | ||||
| USB | 1 Slave / 1 Host | ||||
| Certification | CE / UL | ||||
| Operating Temperature | 0 ~ 50°C | ||||
| Storage Temperature | -20 ~ 60°C | ||||
※ You can search for more files in the download centerDimensions

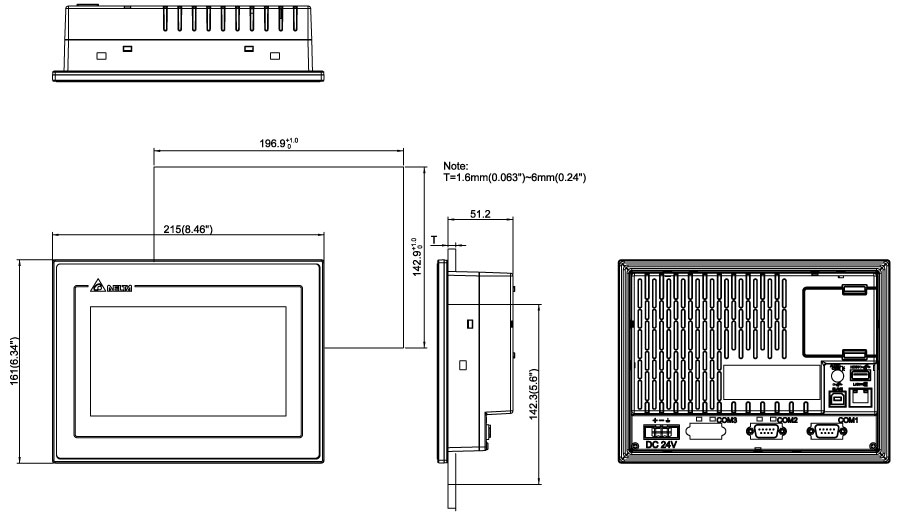

DOP-107CV
Dimensions (W x H x D, mm) Mounting Dimensions (W x H, mm) DOP-105CQ 184 x 144 x 50 172.4 x 132.4 DOP-107CV 215 x 161 x 61.2 196.9 x 142.9 DOP-110CS 272 x 200 x 61 261.3 x 189.3 DOP-110CG 299 x 224 x 46.8 285.2 x 210.2
