The Advanced HMI M Type adopts a wide screen and narrow frame design. It supports Ethernet communication and multilingual inputs, and offers multimedia functions to meet diverse requirements.
Multiple size options: 12” / 15”
High-performance CPU: Cortex-A7 Dual Core
Highly integrated design: Built-in 2 Ethernet ports, 4 serial communication ports (D-Sub x 2), USB, SD card slot, and more.

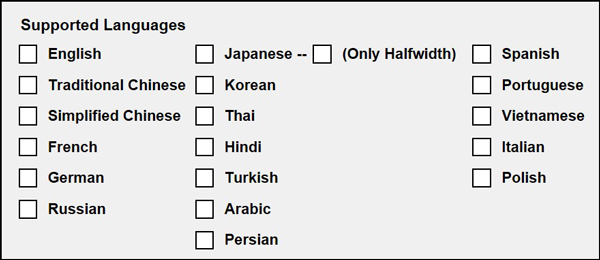

Multi-language input: Supports 16 languages, applicable for recipe parameters and account input

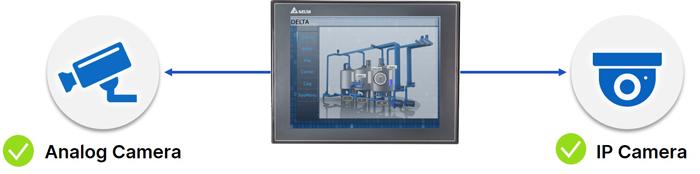

Multimedia Functions: Supports Analog / IP Camera, Video Play and VGA Input
Machinery and equipment in various sectors such as packaging, textiles, woodworking, rubber, and plastics
| DOP-112MX | DOP-115MX | ||||
| Display | 12" TFT | 15" TFT | |||
| Resolution (Pixels) | 1,024 x 768 | ||||
| Color | 24-bit | ||||
| CPU | Cortex-A7 Dual Core 1 GHz | ||||
| ROM | 8 GB | ||||
| RAM | 1 GB | ||||
| Ethernet | 2 Ports | ||||
| COM Port | 4 Serial COM Ports | ||||
| Software Function | Multi-Language Input, Multimedia | ||||
| USB | 1 Mini Slave / 1 Host | ||||
| SD | SD x 1 | ||||
| Certification | CE / UL | ||||
| Operating Temperature | 0 ~ 50°C | ||||
| Storage Temperature | -20 ~ 60°C | ||||
※ You can search for more files in the download centerDimensions

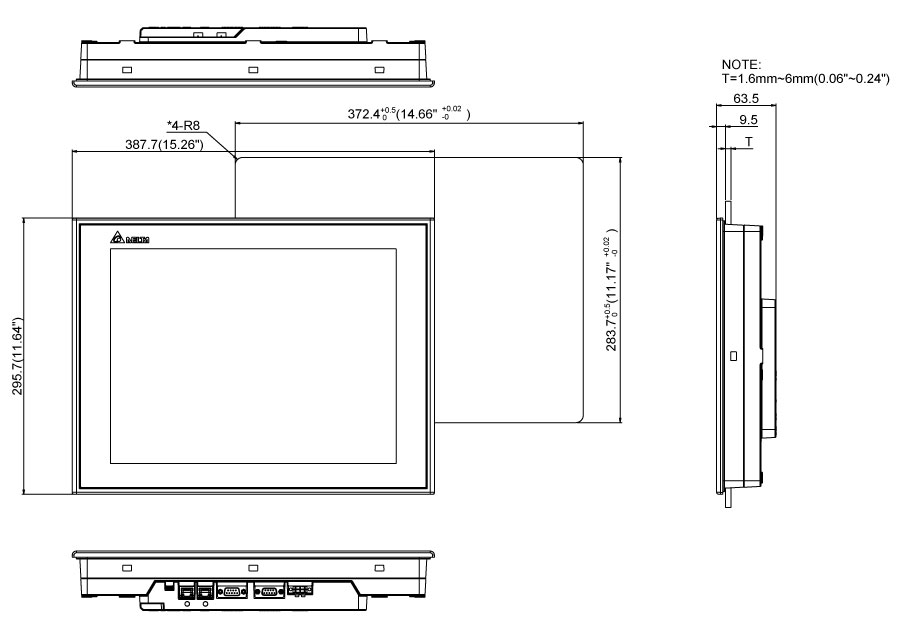

DOP-115MX
Dimensions (W x H x D, mm) Mounting Dimensions (W x H, mm) DOP-112MX 317.4 x 246.4 x 52.7 302.7 x 228.7 DOP-115MX 387.7 x 295.7 x 63.5 372.4 x 283.7
