The Advanced HMI W Type adopts a wide screen and narrow frame design. It supports Ethernet communication and multilingual inputs.
Multiple size options: 4.3” / 7” / 10.1” / 12” / 15”
High-performance CPU: Cortex-A8, Cortex-A7 Dual Core
Highly integrated design: Built-in 2 Ethernet ports, 4 serial communication ports (D-Sub x 2), USB, SD card slot, and more (applicable to 12"/15" models)
Security isolation protection: Power isolation, Serial communication port isolation, Ethernet isolation

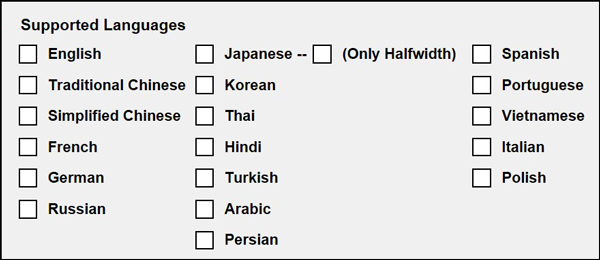

Multi-language input: Supports 16 languages, applicable for recipe parameters and account input
Machinery and equipment in various sectors such as packaging, textiles, woodworking, rubber, and plastics
| DOP-103WQ | DOP-107WV | DOP-110WS | DOP-112WX | DOP-115WX | |
| Display | 4.3" TFT | 7" TFT | 10.1" TFT | 12" TFT | 15" TFT |
| Resolution (Pixels) | 480 x 272 | 800 x 480 | 1,024 x 600 | 1,024 x 768 | 1,024 x 768 |
| Color | 16-bit | 24-bit | |||
| CPU | Cortex-A8 800 MHz | Cortex-A7 Dual Core 1 GHz | |||
| ROM | 256 MB | 8 GB | |||
| RAM | 512 MB | 1 GB | |||
| Ethernet | 1 Port | 2 Ports | |||
| COM Port | 2 Serial COM Ports | 3 Serial COM Ports | 4 Serial COM Ports | ||
| Software Function | Multi-Language Input | ||||
| USB | 1 Slave / 1 Host | 1 Mini Slave / 1 Host | |||
| SD | NA | SD x 1 | |||
| Certification | CE / UL | ||||
| Operating Temperature | 0 ~ 50°C | ||||
| Storage Temperature | -20 ~ 60°C | ||||
※ You can search for more files in the download centerDimension

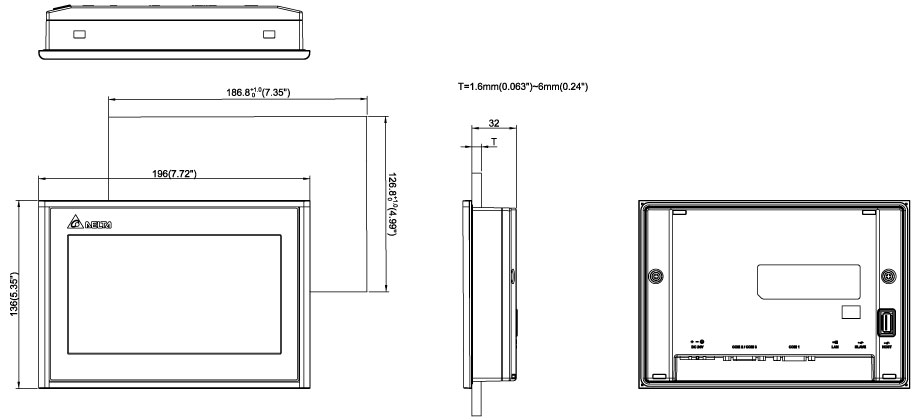

DOP-107WV
Dimensions (W x H x D, mm) Mounting Dimensions (W x H, mm) DOP-103WQ 137 x 103 x37.1 118.8 x 92.8 DOP-107WV 196 x 136 x 39 186.8 x 126.8 DOP-110WS 270 x 180.9 x 47.25 255 x 170.5 DOP-112WX 317.4 x 246.4 x 52.7 302.7 x 228.7 DOP-115WX 387.7 x 295.7 x 63.5 372.4 x 283.7
