ES2 series is a small PLC for basic sequential control. It is economical, highly efficient and functional.
HVAC, molding injection machine, big storage management, packaging machine, precise textile machine, logistic system
MPU points:16 / 20 / 24 / 32 / 40 / 60
Program capacity: 16k steps
Built-in with 3 COM ports: 1 RS-232 port and 2 RS-485 ports, all are able to operate independently (Master/Slave)
Max. I/O points: 256 input points + 16 output points, or 256 output points + 16 input points
DVP-EX2 MPU is built in with 12-bit 4AD/2DA and offers analog/temperature modules of 14-bit resolution
Built-in with 8 high-speed input points (2 points for 100kHz, 6 points for 10kHz) and supports U/D, U/D Dir, A/B counting modes
New motion control instructions: Close loop control, alignment mark, shield, immediate variable speed, S-Curve acceleration/deceleration
Application in emerging industry:Exclusive instructions and function blocks designed for PV solar tracker
Handy instructions for frequency inverter: For controlling the forward running, reverse running, RUN and STOP of Delta's AC motor drives
Password protection:Password for subroutine, user ID, restriction on trial times

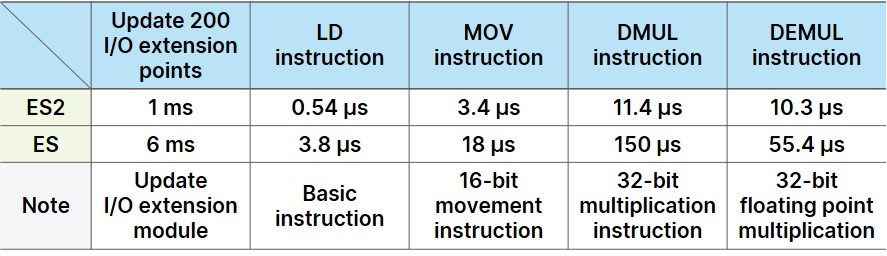

Highly efficient instruction efficient instruction execution
