elta‘s ME300 Series is a new generation compact vector control drive that inherits Delta’s superior drive technology, but with a 60% reduction in size.
It supports both IM and PM motors, providing higher efficiency and flexibility. Various built-in essential functions are standard to
reduce the need for additional expenses and to shorten installation time.
The STO function is an option that prevents damage.
With its user-friendly operation, ultra-compact size, quick installation,
and flexible, durable design, the ME300 is your key to increased market competitiveness and greater success.
Fans & pumps, conveyors, blowing machines, packing machines, wood working machines
Supports IM / IPM /SPM motors and VF / SVC control
Dual rating design:
-Normal Duty (ND), 120% for 60 seconds or 150% for 3 seconds
-Heavy Duty (HD), 150% for 60 seconds or 200% for 3 seconds
Up to 200% rated starting torque at 3 Hz
2 set of motor parameter for multi-motor control
Supports high speed pulse and PWM signal input
Built-in single /multi-pump function
Built-in braking choppers for the entire series
Optional EMC filter for 1-phase 230V(C2), 3-phase 460V(C3) models
Optional Safe Torque Off (SIL2/PLd) model
100% PCB coating for circuit(IEC 60721-3-3 class 3C3) for harsh environment

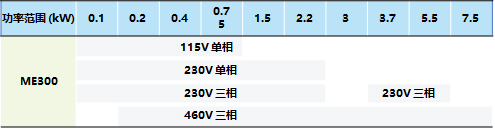

Power range:
